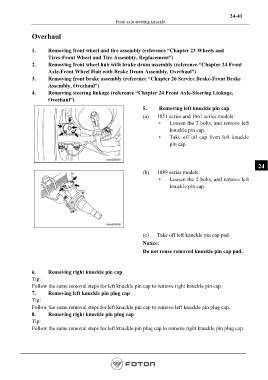

24-41
Front axle-steering knuckle

Overhaul

1. Removing front wheel and tire assembly (reference “Chapter 23 Wheels and
Tires-Front Wheel and Tire Assembly, Replacement”)
2. Removing front wheel hub with brake drum assembly (reference “Chapter 24 Front
Axle-Front Wheel Hub with Brake Drum Assembly, Overhaul”)
3. Removing front brake assembly (reference “Chapter 26 Service Brake-Front Brake
Assembly, Overhaul”)
4. Removing steering linkage (reference “Chapter 24 Front Axle-Steering Linkage,
Overhaul”)
5. Removing left knuckle pin cap
(a) 1051 series and 1061 series models:
• Loosen the 3 bolts, and remove left
knuckle pin cap.
• Take off oil cup from left knuckle
pin cap.

24
(b) 1089 series models:
• Loosen the 2 bolts, and remove left
knuckle pin cap.

(c) Take off left knuckle pin cap pad.
Notice:

Do not reuse removed knuckle pin cap pad.

6. Removing right knuckle pin cap
Tip:
Follow the same removal steps for left knuckle pin cap to remove right knuckle pin cap.
7. Removing left knuckle pin plug cap
Tip:
Follow the same removal steps for left knuckle pin cap to remove left knuckle pin plug cap.
8. Removing right knuckle pin plug cap
Tip:
Follow the same removal steps for left knuckle pin plug cap to remove right knuckle pin plug cap.
