P. 695
24-37
Front axle-steering knuckle

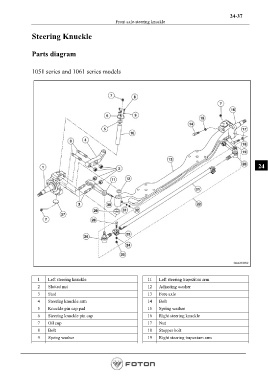

Steering Knuckle
Parts diagram
1051 series and 1061 series models
24
1 Left steering knuckle 11 Left steering trapezium arm
2 Slotted nut 12 Adjusting washer
3 Stud 13 Fore axle
4 Steering knuckle arm 14 Bolt
5 Knuckle pin cap pad 15 Spring washer
6 Steering knuckle pin cap 16 Right steering knuckle
7 Oil cup 17 Nut
8 Bolt 18 Stopper bolt
9 Spring washer 19 Right steering trapezium arm
10 Knuckle pin 20 Tie rod right end assembly
