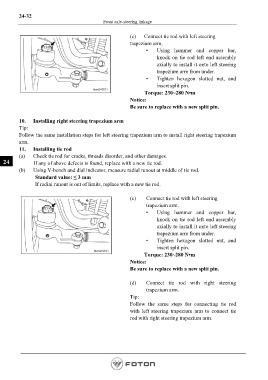

24-32
Front axle-steering linkage

(c) Connect tie rod with left steering
trapezium arm.
• Using hammer and copper bar,
knock on tie rod left end assembly
axially to install it onto left steering
trapezium arm from under.
• Tighten hexagon slotted nut, and
insert split pin.
Torque: 230~280 N•m
Notice:
Be sure to replace with a new split pin.

10. Installing right steering trapezium arm
Tip:
Follow the same installation steps for left steering trapezium arm to install right steering trapezium
arm.
11. Installing tie rod
(a) Check tie rod for cracks, threads disorder, and other damages.
24 If any of above defects is found, replace with a new tie rod.
(b) Using V-bench and dial indicator, measure radial runout at middle of tie rod.
Standard value: ≤ 3 mm
If radial runout is out of limits, replace with a new tie rod.

(c) Connect tie rod with left steering
trapezium arm.
• Using hammer and copper bar,
knock on tie rod left end assembly
axially to install it onto left steering
trapezium arm from under.
• Tighten hexagon slotted nut, and
insert split pin.
Torque: 230~280 N•m
Notice:
Be sure to replace with a new split pin.

(d) Connect tie rod with right steering
trapezium arm.
Tip:
Follow the same steps for connecting tie rod
with left steering trapezium arm to connect tie
rod with right steering trapezium arm.
