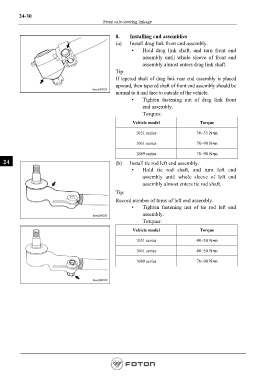

24-30
Front axle-steering linkage

8. Installing end assemblies
(a) Install drag link front end assembly.
• Hold drag link shaft, and turn front end
assembly until whole sleeve of front end
assembly almost enters drag link shaft.
Tip:
If tapered shaft of drag link rear end assembly is placed
upward, then tapered shaft of front end assembly should be
normal to it and face to outside of the vehicle.
• Tighten fastening nut of drag link front
end assembly.
Torques:
Vehicle model Torque

1051 series 30~35 N•m

1061 series 70~90 N•m

1089 series 70~90 N•m

24 (b) Install tie rod left end assembly.
• Hold tie rod shaft, and turn left end
assembly until whole sleeve of left end
assembly almost enters tie rod shaft.
Tip:

Record number of turns of left end assembly.
• Tighten fastening nut of tie rod left end
assembly.
Torques:

Vehicle model Torque

1051 series 40~50 N•m

1061 series 40~50 N•m

1089 series 70~90 N•m
