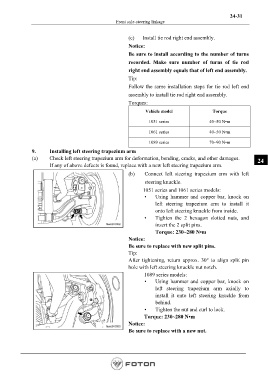

24-31
Front axle-steering linkage

(c) Install tie rod right end assembly.
Notice:
Be sure to install according to the number of turns
recorded. Make sure number of turns of tie rod

right end assembly equals that of left end assembly.
Tip:
Follow the same installation steps for tie rod left end
assembly to install tie rod right end assembly.

Torques:
Vehicle model Torque

1051 series 40~50 N•m

1061 series 40~50 N•m

1089 series 70~90 N•m

9. Installing left steering trapezium arm
(a) Check left steering trapezium arm for deformation, bending, cracks, and other damages. 24
If any of above defects is found, replace with a new left steering trapezium arm.
(b) Connect left steering trapezium arm with left

steering knuckle.
1051 series and 1061 series models:
• Using hammer and copper bar, knock on
left steering trapezium arm to install it
onto left steering knuckle from inside.
• Tighten the 2 hexagon slotted nuts, and
insert the 2 split pins.
Torque: 230~280 N•m
Notice:
Be sure to replace with new split pins.
Tip:
After tightening, return approx. 30° to align split pin
hole with left steering knuckle nut notch.
1089 series models:
• Using hammer and copper bar, knock on
left steering trapezium arm axially to
install it onto left steering knuckle from
behind.
• Tighten the nut and curl to lock.
Torque: 230~280 N•m
Notice:
Be sure to replace with a new nut.
