P. 687
24-29
Front axle-steering linkage

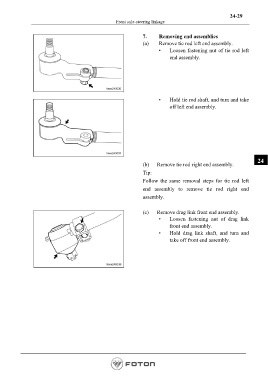

7. Removing end assemblies
(a) Remove tie rod left end assembly.
• Loosen fastening nut of tie rod left
end assembly.
• Hold tie rod shaft, and turn and take
off left end assembly.
24
(b) Remove tie rod right end assembly.
Tip:
Follow the same removal steps for tie rod left
end assembly to remove tie rod right end
assembly.
(c) Remove drag link front end assembly.
• Loosen fastening nut of drag link
front end assembly.
• Hold drag link shaft, and turn and
take off front end assembly.
