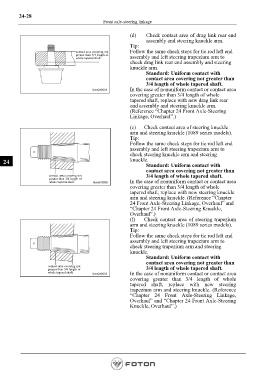

P. 686
24-28
Front axle-steering linkage
(d) Check contact area of drag link rear end
assembly and steering knuckle arm.
Tip:
contact area covering not Follow the same check steps for tie rod left end
greater than 3/4 length of
whole tapered shaft. assembly and left steering trapezium arm to
check drag link rear end assembly and steering
knuckle arm.
Standard: Uniform contact with
contact area covering not greater than
3/4 length of whole tapered shaft.
In the case of nonuniform contact or contact area
covering greater than 3/4 length of whole
tapered shaft, replace with new drag link rear
end assembly and steering knuckle arm.
(Reference “Chapter 24 Front Axle-Steering
Linkage, Overhaul”.)
(e) Check contact area of steering knuckle
arm and steering knuckle (1089 series models).
Tip:
Follow the same check steps for tie rod left end
assembly and left steering trapezium arm to
check steering knuckle arm and steering
24 knuckle.
Standard: Uniform contact with
contact area covering not greater than
contact area covering not 3/4 length of whole tapered shaft.
greater than 3/4 length of
whole tapered shaft. In the case of nonuniform contact or contact area
covering greater than 3/4 length of whole
tapered shaft, replace with new steering knuckle
arm and steering knuckle. (Reference “Chapter
24 Front Axle-Steering Linkage, Overhaul” and
“Chapter 24 Front Axle-Steering Knuckle,
Overhaul”.)
(f) Check contact area of steering trapezium
arm and steering knuckle (1089 series models).
Tip:
Follow the same check steps for tie rod left end
assembly and left steering trapezium arm to
check steering trapezium arm and steering
knuckle.
Standard: Uniform contact with
contact area covering not greater than
contact area covering not
greater than 3/4 length of 3/4 length of whole tapered shaft.
whole tapered shaft. In the case of nonuniform contact or contact area
covering greater than 3/4 length of whole
tapered shaft, replace with new steering
trapezium arm and steering knuckle. (Reference
“Chapter 24 Front Axle-Steering Linkage,
Overhaul” and “Chapter 24 Front Axle-Steering
Knuckle, Overhaul”.)
