Front axle-steering linkage
1089 Series Models
24

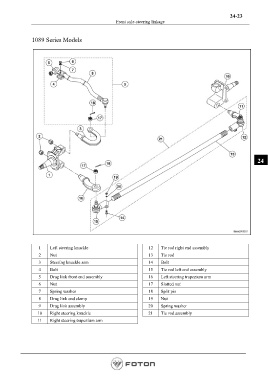

1 Left steering knuckle 12 Tie rod right end assembly
2 Nut 13 Tie rod
3 Steering knuckle arm 14 Bolt
4 Bolt 15 Tie rod left end assembly
5 Drag link front end assembly 16 Left steering trapezium arm
6 Nut 17 Slotted nut
7 Spring washer 18 Split pin
8 Drag link end clamp 19 Nut
9 Drag link assembly 20 Spring washer
10 Right steering knuckle 21 Tie rod assembly
11 Right steering trapezium arm
