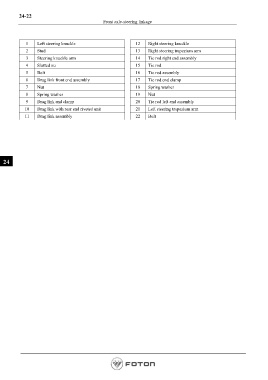

Front axle-steering linkage
1 Left steering knuckle 12 Right steering knuckle
2 Stud 13 Right steering trapezium arm
3 Steering knuckle arm 14 Tie rod right end assembly
4 Slotted nu 15 Tie rod
5 Bolt 16 Tie rod assembly
6 Drag link front end assembly 17 Tie rod end clamp
7 Nut 18 Spring washer
8 Spring washer 19 Nut
9 Drag link end clamp 20 Tie rod left end assembly
10 Drag link with rear end riveted unit 21 Left steering trapezium arm
11 Drag link assembly 22 Bolt
