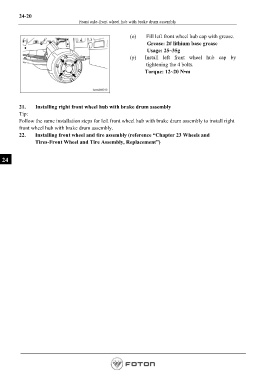

Page 678 - Workshop Manual - Aumark (BJ1051)
P. 678
24-20
Front axle-front wheel hub with brake drum assembly
(o) Fill left front wheel hub cap with grease.
Grease: 2# lithium base grease
Usage: 25~35g
(p) Install left front wheel hub cap by
tightening the 4 bolts.
Torque: 12~20 N•m
21. Installing right front wheel hub with brake drum assembly
Tip:
Follow the same installation steps for left front wheel hub with brake drum assembly to install right
front wheel hub with brake drum assembly.
22. Installing front wheel and tire assembly (reference “Chapter 23 Wheels and
Tires-Front Wheel and Tire Assembly, Replacement”)
24
Page 678
