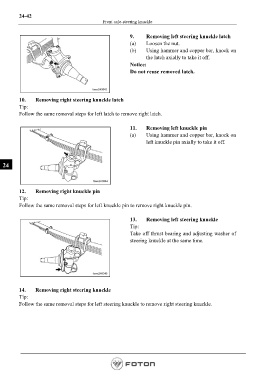

24-42
Front axle-steering knuckle
9. Removing left steering knuckle latch
(a) Loosen the nut.
(b) Using hammer and copper bar, knock on
the latch axially to take it off.
Notice:
Do not reuse removed latch.
10. Removing right steering knuckle latch
Tip:
Follow the same removal steps for left latch to remove right latch.
11. Removing left knuckle pin
(a) Using hammer and copper bar, knock on
left knuckle pin axially to take it off.
24
12. Removing right knuckle pin
Tip:
Follow the same removal steps for left knuckle pin to remove right knuckle pin.
13. Removing left steering knuckle
Tip:
Take off thrust bearing and adjusting washer of
steering knuckle at the same time.
14. Removing right steering knuckle
Tip:
Follow the same removal steps for left steering knuckle to remove right steering knuckle.
