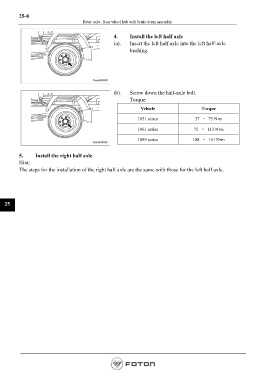

Page 718 - Workshop Manual - Aumark (BJ1051)

25-8
Rear axle- Rear wheel hub with brake drum assembly

4. Install the left half axle
(a). Insert the left half axle into the left half-axle
bushing.

(b). Screw down the half-axle bolt.
Torque:
Vehicle Torque

1051 series 37 ～ 75 N•m

1061 series 75 ～ 113 N•m

1089 series 108 ～ 161 N•m

5. Install the right half axle
Hint:
The steps for the installation of the right half axle are the same with those for the left half axle.

25

Page 718
