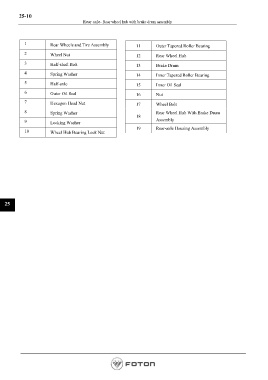

25-10
Rear axle- Rear wheel hub with brake drum assembly

1 Rear Wheels and Tire Assembly 11 Outer Tapered Roller Bearing

2 Wheel Nut 12 Rear Wheel Hub

3 Half-shaft Bolt 13 Brake Drum

4 Spring Washer 14 Inner Tapered Roller Bearing
5 Half-axle 15 Inner Oil Seal

6 Outer Oil Seal 16 Nut

7 Hexagon Head Nut 17 Wheel Bolt
8 Spring Washer Rear Wheel Hub With Brake Drum
18
9 Locking Washer Assembly
19 Rear-axle Housing Assembly
10 Wheel Hub Bearing Lock Nut

25
