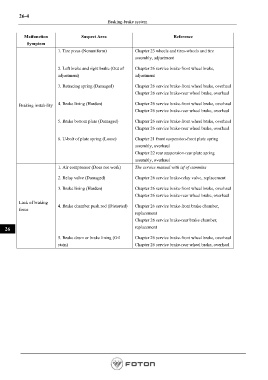

26-4
Braking-brake system

Maifunction Suspect Area Reference
Symptom
1. Tire press (Nonuniform) Chapter 23 wheels and tires-wheels and tire
assembly, adjustment

2. Left brake and right brake (Out of Chapter 26 service brake-front wheel brake,
adjustment) adjustment

3. Retracing spring (Damaged) Chapter 26 service brake-front wheel brake, overhaul
Chapter 26 service brake-rear wheel brake, overhaul

Braking instability 4. Brake lining (Harden) Chapter 26 service brake-front wheel brake, overhaul
Chapter 26 service brake-rear wheel brake, overhaul

5. Brake bottom plate (Damaged) Chapter 26 service brake-front wheel brake, overhaul
Chapter 26 service brake-rear wheel brake, overhaul

6. U-bolt of plate spring (Loose) Chapter 21 front suspension-front plate spring
assembly, overhaul
Chapter 22 rear suspension-rear plate spring
assembly, overhaul
1. Air compressor (Does not work) The service manual with isf of cummins
2. Relay valve (Damaged) Chapter 26 service brake-relay valve, replacement

3. Brake lining (Harden) Chapter 26 service brake-front wheel brake, overhaul
Chapter 26 service brake-rear wheel brake, overhaul
Lack of braking
4. Brake chamber push rod (Distorted) Chapter 26 service brake-front brake chamber,
force
replacement
Chapter 26 service brake-rear brake chamber,

26 replacement
5. Brake drum or brake lining (Oil Chapter 26 service brake-front wheel brake, overhaul
stain) Chapter 26 service brake-rear wheel brake, overhaul
