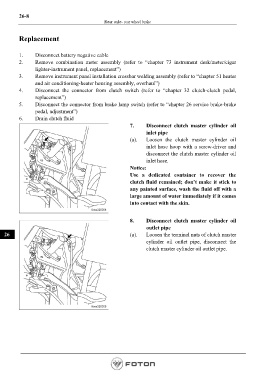

26-8
Rear axle- rear wheel brake

Replacement

1. Disconnect battery negative cable
2. Remove combination meter assembly (refer to “chapter 73 instrument desk/meter/cigar
lighter-instrument panel, replacement”)
3. Remove instrument panel installation crossbar welding assembly (refer to “chapter 51 heater
and air conditioning-heater housing assembly, overhaul”)
4. Disconnect the connector from clutch switch (refer to “chapter 32 clutch-clutch pedal,
replacement”)
5. Disconnect the connector from brake lamp switch (refer to “chapter 26 service brake-brake
pedal, adjustment”)
6. Drain clutch fluid
7. Disconnect clutch master cylinder oil
inlet pipe
(a). Loosen the clutch master cylinder oil
inlet hose hoop with a screw-driver and
disconnect the clutch master cylinder oil
inlet hose.
Notice:
Use a dedicated container to recover the
clutch fluid remained; don’t make it stick to
any painted surface, wash the fluid off with a
large amount of water immediately if it comes
into contact with the skin.

8. Disconnect clutch master cylinder oil
outlet pipe
26 (a). Loosen the terminal nuts of clutch master
cylinder oil outlet pipe, disconnect the
clutch master cylinder oil outlet pipe.
