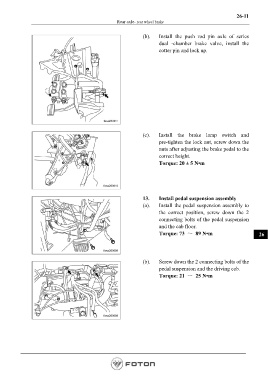

26-11
Rear axle- rear wheel brake

(b). Install the push rod pin axle of series
dual -chamber brake valve, install the
cotter pin and lock up.

(c). Install the brake lamp switch and
pre-tighten the lock nut, screw down the
nuts after adjusting the brake pedal to the
correct height.
Torque: 20 ± 5 N•m

13. Install pedal suspension assembly
(a). Install the pedal suspension assembly to
the correct position, screw down the 2
connecting bolts of the pedal suspension
and the cab floor.
Torque: 73 ～ 89 N•m 26

(b). Screw down the 2 connecting bolts of the
pedal suspension and the driving cab.
Torque: 21 ～ 25 N•m
