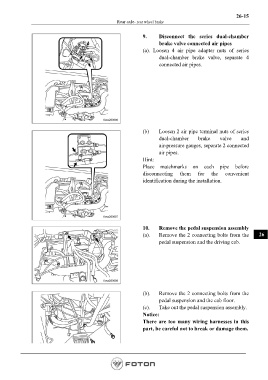

26-15
Rear axle- rear wheel brake

9. Disconnect the series dual-chamber
brake valve connected air pipes
(a). Loosen 4 air pipe adapter nuts of series
dual-chamber brake valve, separate 4
connected air pipes.

(b) Loosen 2 air pipe terminal nuts of series
dual-chamber brake valve and
air-pressure gauges, separate 2 connected
air pipes.
Hint:
Place matchmarks on each pipe before
disconnecting them for the convenient
identification during the installation.

10. Remove the pedal suspension assembly
(a). Remove the 2 connecting bolts from the 26
pedal suspension and the driving cab.

(b). Remove the 2 connecting bolts from the
pedal suspension and the cab floor.
(c). Take out the pedal suspension assembly.
Notice:
There are too many wiring harnesses in this
part, be careful not to break or damage them.
