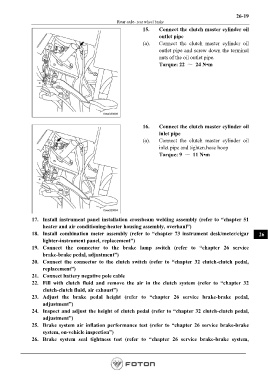

26-19
Rear axle- rear wheel brake
15. Connect the clutch master cylinder oil
outlet pipe
(a). Connect the clutch master cylinder oil
outlet pipe and screw down the terminal
nuts of the oil outlet pipe.
Torque: 22 ～ 24 N•m

16. Connect the clutch master cylinder oil
inlet pipe
(a). Connect the clutch master cylinder oil
inlet pipe and tighten.hose hoop
Torque: 9 ～ 11 N•m

17. Install instrument panel installation crossbeam welding assembly (refer to “chapter 51
heater and air conditioning-heater housing assembly, overhaul”)
18. Install combination meter assembly (refer to “chapter 73 instrument desk/meter/cigar 26
lighter-instrument panel, replacement”)
19. Connect the connector to the brake lamp switch (refer to “chapter 26 service
brake-brake pedal, adjustment”)
20. Connect the connector to the clutch switch (refer to “chapter 32 clutch-clutch pedal,
replacement”)
21. Connect battery negative pole cable
22. Fill with clutch fluid and remove the air in the clutch system (refer to “chapter 32
clutch-clutch fluid, air exhaust”)
23. Adjust the brake pedal height (refer to “chapter 26 service brake-brake pedal,
adjustment”)
24. Inspect and adjust the height of clutch pedal (refer to “chapter 32 clutch-clutch pedal,
adjustment”)
25. Brake system air inflation performance test (refer to “chapter 26 service brake-brake
system, on-vehicle inspection”)
26. Brake system seal tightness test (refer to “chapter 26 service brake-brake system,
on-vehicle inspection”)
