P. 776

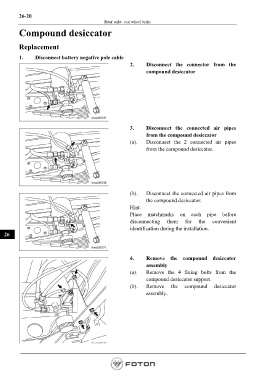

26-20
Rear axle- rear wheel brake
Compound desiccator
Replacement
1. Disconnect battery negative pole cable
2. Disconnect the connector from the
compound desiccator
3. Disconnect the connected air pipes
from the compound desiccator
(a). Disconnect the 2 connected air pipes
from the compound desiccator.
(b). Disconnect the connected air pipes from
the compound desiccator.
Hint:
Place matchmarks on each pipe before
disconnecting them for the convenient
identification during the installation.
26
4. Remove the compound desiccator
assembly
(a). Remove the 4 fixing bolts from the
compound desiccator support.
(b). Remove the compound desiccator
assembly.
