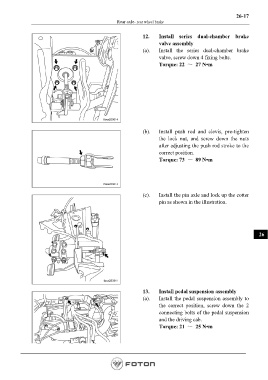

26-17
Rear axle- rear wheel brake

12. Install series dual-chamber brake
valve assembly
(a). Install the series dual-chamber brake
valve, screw down 4 fixing bolts.
Torque: 22 ～ 27 N•m

(b). Install push rod and clevis, pre-tighten
the lock nut, and screw down the nuts
after adjusting the push rod stroke to the
correct position.
Torque: 73 ～ 89 N•m

(c). Install the pin axle and lock up the cotter
pin as shown in the illustration.

26

13. Install pedal suspension assembly
(a). Install the pedal suspension assembly to
the correct position, screw down the 2
connecting bolts of the pedal suspension
and the driving cab.
Torque: 21 ～ 25 N•m
