26-16
Rear axle- rear wheel brake

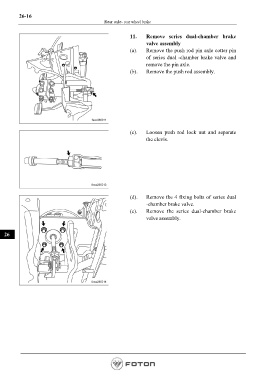

11. Remove series dual-chamber brake
valve assembly
(a). Remove the push rod pin axle cotter pin
of series dual -chamber brake valve and
remove the pin axle.
(b). Remove the push rod assembly.
(c). Loosen push rod lock nut and separate
the clevis.
(d). Remove the 4 fixing bolts of series dual
-chamber brake valve.
(e). Remove the series dual-chamber brake
valve assembly.
