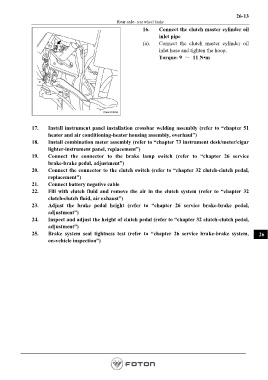

Page 769 - Workshop Manual - Aumark (BJ1051)

26-13
Rear axle- rear wheel brake
16. Connect the clutch master cylinder oil
inlet pipe
(a). Connect the clutch master cylinder oil
inlet hose and tighten the hoop.
Torque: 9 ～ 11 N•m

17. Install instrument panel installation crossbar welding assembly (refer to “chapter 51
heater and air conditioning-heater housing assembly, overhaul”)
18. Install combination meter assembly (refer to “chapter 73 instrument desk/meter/cigar
lighter-instrument panel, replacement”)
19. Connect the connector to the brake lamp switch (refer to “chapter 26 service
brake-brake pedal, adjustment”)
20. Connect the connector to the clutch switch (refer to “chapter 32 clutch-clutch pedal,
replacement”)
21. Connect battery negative cable
22. Fill with clutch fluid and remove the air in the clutch system (refer to “chapter 32
clutch-clutch fluid, air exhaust”)
23. Adjust the brake pedal height (refer to “chapter 26 service brake-brake pedal,
adjustment”)
24. Inspect and adjust the height of clutch pedal (refer to “chapter 32 clutch-clutch pedal,
adjustment”)
25. Brake system seal tightness test (refer to “chapter 26 service brake-brake system, 26
on-vehicle inspection”)
