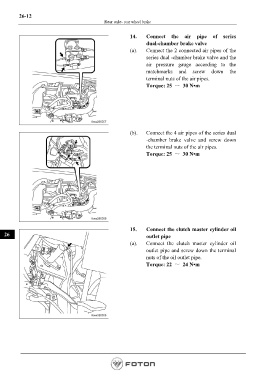

26-12
Rear axle- rear wheel brake

14. Connect the air pipe of series
dual-chamber brake valve
(a). Connect the 2 connected air pipes of the
series dual -chamber brake valve and the
air pressure gauge according to the
matchmarks and screw down the
terminal nuts of the air pipes.
Torque: 25 ～ 30 N•m

(b). Connect the 4 air pipes of the series dual
-chamber brake valve and screw down
the terminal nuts of the air pipes.
Torque: 25 ～ 30 N•m

15. Connect the clutch master cylinder oil
26 outlet pipe
(a). Connect the clutch master cylinder oil
outlet pipe and screw down the terminal
nuts of the oil outlet pipe.
Torque: 22 ～ 24 N•m
