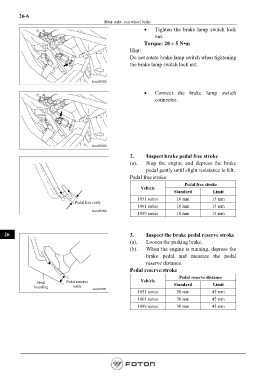

Page 762 - Workshop Manual - Aumark (BJ1051)

26-6
Rear axle- rear wheel brake
• Tighten the brake lamp switch lock
nut.
Torque: 20 ± 5 N•m
Hint:
Do not rotate brake lamp switch when tightening
the brake lamp switch lock nut.

• Connect the brake lamp switch
connector.

2. Inspect brake pedal free stroke
(a). Stop the engine and depress the brake
pedal gently until slight resistance is felt.
Pedal free stroke
Pedal free stroke
Vehicle
Standard Limit
1051 series 10 mm 15 mm
Pedal free route
1061 series 10 mm 15 mm
1089 series 10 mm 15 mm

26 3. Inspect the brake pedal reserve stroke
(a). Loosen the parking brake.
(b). When the engine is running, depress the
brake pedal and measure the pedal
reserve distance.
Pedal reserve:stroke
Pedal reserve distance
Front Pedal reserve Vehicle Standard Limit
boarding route
1051 series 50 mm 45 mm
1061 series 50 mm 45 mm
1089 series 50 mm 45 mm
