26-5
Rear axle- rear wheel brake

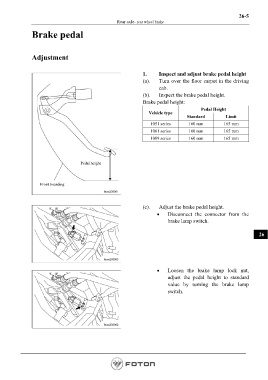

Brake pedal

Adjustment

1. Inspect and adjust brake pedal height
(a). Turn over the floor carpet in the driving
cab.
(b). Inspect the brake pedal height.
Brake pedal height:

Pedal Height
Vehicle type
Standard Limit
1051 series 160 mm 165 mm
1061 series 160 mm 165 mm
1089 series 160 mm 165 mm

Pedal height

Front boarding

(c). Adjust the brake pedal height.
• Disconnect the connector from the
brake lamp switch.

26

• Loosen the brake lamp lock nut,
adjust the pedal height to standard
value by turning the brake lamp
switch.
