P. 825
27-3
Parking brake-central braking system

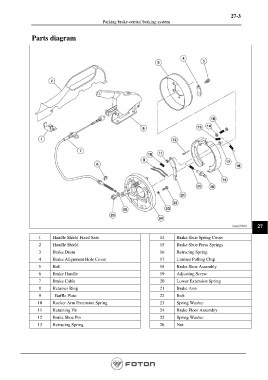

Parts diagram
27
1 Handle Shield Fixed Seat 14 Brake Shoe Spring Cover
2 Handle Shield 15 Brake Shoe Press Springs
3 Brake Drum 16 Retracing Spring
4 Brake Alignment Hole Cover 17 Limited Pulling Chip
5 Bolt 18 Brake Shoe Assembly
6 Brake Handle 19 Adjusting Screw
7 Brake Cable 20 Lower Extension Spring
8 Retainer Ring 21 Brake Arm
9 Baffle Plate 22 Bolt
10 Rocker Arm Extension Spring 23 Spring Washer
11 Retaining Pin 24 Brake Floor Assembly
12 Brake Shoe Pin 25 Spring Washer
13 Retracing Spring 26 Nut
