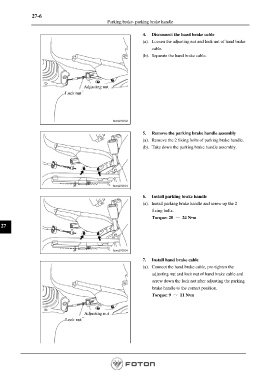

27-6
Parking brake- parking brake handle

4. Disconnect the hand brake cable
(a). Loosen the adjusting nut and lock nut of hand brake
cable.
(b). Separate the hand brake cable.

Adjusting nut

Lock nut

5. Remove the parking brake handle assembly
(a). Remove the 2 fixing bolts of parking brake handle.
(b). Take down the parking brake handle assembly.

6. Install parking brake handle
(a). Install parking brake handle and screw up the 2
fixing bolts.
Torque: 20 ～ 24 N•m
27

7. Install hand brake cable
(a). Connect the hand brake cable, pre-tighten the
adjusting nut and lock nut of hand brake cable and
screw down the lock nut after adjusting the parking
brake handle to the correct position.
Torque: 9 ～ 11 N•m

Adjusting nut
Lock nut
