P. 833

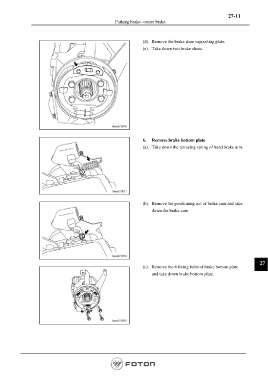

27-11
Parking brake--center brake
(d). Remove the brake shoe supporting plate.
(e). Take down two brake shoes.
6. Remove brake bottom plate
(a). Take down the retracing spring of hand brake arm.
(b). Remove the positioning nut of brake cam and take
down the brake cam.
(c). Remove the 4 fixing bolts of brake bottom plate 27
and take down brake bottom plate.
