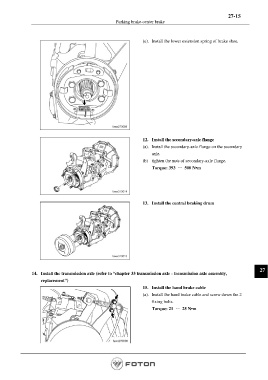

27-15
Parking brake-center brake

(e). Install the lower extension spring of brake shoe.

12. Install the secondary-axle flange
(a). Install the secondary-axle flange on the secondary
axle.
(b) tighten the nuts of secondary-axle flange.
Torque: 393 ～ 500 N•m

13. Install the central braking drum

27
14. Install the transmission axle (refer to “chapter 33 transmission axle - transmission axle assembly,
replacement”)
15. Install the hand brake cable
(a). Install the hand brake cable and screw down the 2
fixing bolts.
Torque: 21 ～ 25 N•m
