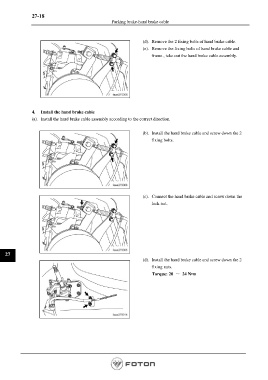

Page 840 - Workshop Manual - Aumark (BJ1051)

27-18
Parking brake-hand brake cable

(d). Remove the 2 fixing bolts of hand brake cable.
(e). Remove the fixing bolts of hand brake cable and
frame , take out the hand brake cable assembly.

4. Install the hand brake cable
(a). Install the hand brake cable assembly according to the correct direction.

(b). Install the hand brake cable and screw down the 2
fixing bolts.

(c). Connect the hand brake cable and screw down the
lock nut.

27
(d). Install the hand brake cable and screw down the 2
fixing nuts.
Torque: 20 ～ 24 N•m
