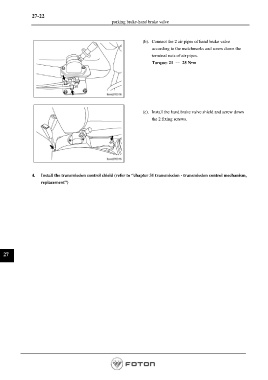

Page 844 - Workshop Manual - Aumark (BJ1051)
P. 844
27-22
parking brake-hand brake valve
(b). Connect the 2 air pipes of hand brake valve
according to the matchmarks and screw down the
terminal nuts of air pipes.
Torque: 21 ～ 25 N•m
(c). Install the hand brake valve shield and screw down
the 2 fixing screws.
4. Install the transmission control shield (refer to “chapter 31 transmission - transmission control mechanism,
replacement”)
27
Page 844
