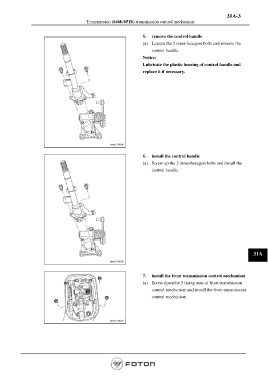

31A-3
Transmission (646b/651b)-transmission control mechanism

5. remove the control handle
(a). Loosen the 2 inner-hexagon bolts and remove the
control handle.
Notice:
Lubricate the plastic bearing of control handle and
replace it if necessary.

6. install the control handle
(a). Screw up the 2 inner-hexagon bolts and install the
control handle.

31A

7. install the front transmission control mechanism
(a). Screw dpwnthe 3 fixing nuts of front transmission
control mechanism and install the front transmission
control mechanism.
