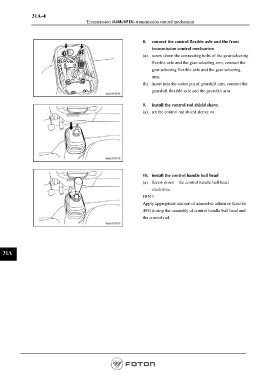

31A-4
Transmission (646b/651b)-transmission control mechanism

8. connect the control flexible axle and the front
transmission control mechanism
(a). screw down the connecting bolts of the gear selecting
flexible axle and the gear selecting arm, connect the
gear selecting flexible axle and the gear selecting
arm.
(b). insert into the cotter pin of gearshift arm, connect the
gearshift flexible axle and the gearshift arm.

9. install the control rod shield sleeve
(a). set the control rod shield sleeve on.

10. install the control handle ball head
(a). Screw down the control handle ball head
clockwise.
HINT:
Apply appropriate amount of anaerobic adhesive (Loctite
495) during the assembly of control handle ball head and
the control rod.
