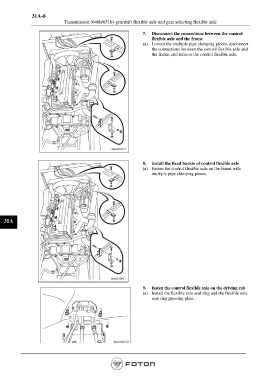

31A-8
Transmission (646b/651b)-gearshift flexible axle and gear selecting flexible axle
7. Disconnect the connections between the control
flexible axle and the frame
(a). Loosen the multiple pipe clamping pieces, disconnect
the connections between the control flexible axle and
the frame, and remove the control flexible axle.
8. install the fixed buckle of control flexible axle
(a). Fasten the control flexible axle on the frame with
multiple pipe clamping pieces.
31A
9. fasten the control flexible axle on the driving cab
(a). Install the flexible axle seal ring and the flexible axle
sear ring pressing plate.
