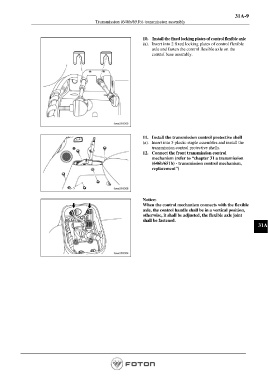

31A-9
Transmission (646b/651b)-transmission assembly
10. Install the fixed locking plates of control flexible axle
(a). Insert into 2 fixed locking plates of control flexible
axle and fasten the control flexible axle on the
control base assembly.
11. Install the transmission control protective shell
(a). Insert into 5 plastic staple assembles and install the
transmission control protective shells.
12. Connect the front transmission control
mechanism (refer to “chapter 31 a transmission
(646b/651b) - transmission control mechanism,
replacement”)
Notice:
When the control mechanism connects with the flexible
axle, the control handle shall be in a vertical position,
otherwise, it shall be adjusted, the flexible axle joint
shall be fastened.
31A
