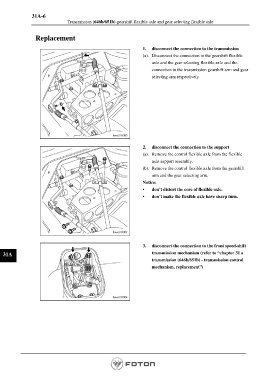

Page 852 - Workshop Manual - Aumark (BJ1051)

31A-6
Transmission (646b/651b)-gearshift flexible axle and gear selecting flexible axle

Replacement

1. disconnect the connection to the transmission
(a). Disconnect the connection to the gearshift flexible
axle and the gear selecting flexible axle and the
connection to the transmission gearshift arm and gear
selecting arm respectively.

2. disconnect the connection to the support
(a). Remove the control flexible axle from the flexible
axle support assembly.
(b). Remove the control flexible axle from the gearshift
arm and the gear selecting arm.
Notice:
• don’t distort the core of flexible axle.
• don’t make the flexible axle have sharp turn.

3. disconnect the connection to the front speed-shift

31A transmission mechanism (refer to “chapter 31 a
transmission (646b/651b) - transmission control
mechanism, replacement”)
