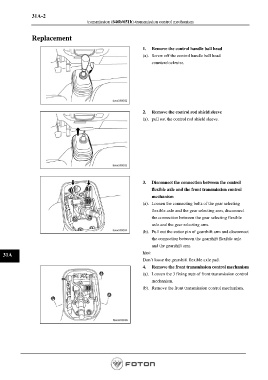

Page 848 - Workshop Manual - Aumark (BJ1051)

31A-2
transmission (646b/651b)-transmission control mechanism

Replacement

1. Remove the control handle ball head
(a). Screw off the control handle ball head
counterclockwise.

2. Remove the control rod shield sleeve
(a). pull out the control rod shield sleeve.

3. Disconnect the connection between the control
flexible axle and the front transmission control
mechanism
(a). Loosen the connecting bolts of the gear selecting
flexible axle and the gear selecting arm, disconnect
the connection between the gear selecting flexible
axle and the gear selecting arm.
(b). Pull out the cotter pin of gearshift arm and disconnect
the connection between the gearshift flexible axle
and the gearshift arm.

31A hint:
Don’t loose the gearshift flexible axle pad.
4. Remove the front transmission control mechanism
(a). Loosen the 3 fixing nuts of front transmission control
mechanism.
(b). Remove the front transmission control mechanism.

Page 848
