P. 853

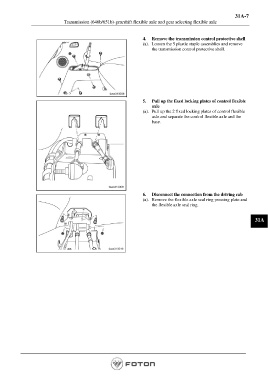

31A-7
Transmission (646b/651b)-gearshift flexible axle and gear selecting flexible axle
4. Remove the transmission control protective shell
(a). Loosen the 5 plastic staple assemblies and remove
the transmission control protective shell.
5. Pull up the fixed locking plates of control flexible
axle
(a). Pull up the 2 fixed locking plates of control flexible
axle and separate the control flexible axle and the
base.
6. Disconnect the connection from the driving cab
(a). Remove the flexible axle seal ring pressing plate and
the flexible axle seal ring.
31A
