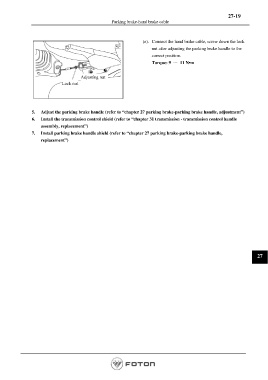

27-19
Parking brake-hand brake cable

(e). Connect the hand brake cable, screw down the lock
nut after adjusting the parking brake handle to the
correct position.
Torque: 9 ～ 11 N•m

Adjusting nut
Lock nut

5. Adjust the parking brake handle (refer to “chapter 27 parking brake-parking brake handle, adjustment”)
6. Install the transmission control shield (refer to “chapter 31 transmission - transmission control handle
assembly, replacement”)
7. Install parking brake handle shield (refer to “chapter 27 parking brake-parking brake handle,
replacement”)

27
