P. 829

27-7

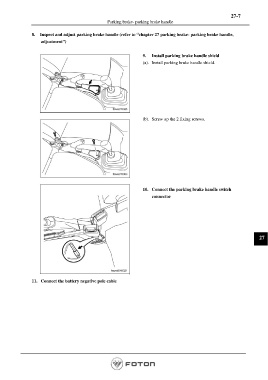

                                                 Parking brake- parking brake handle

               8.  Inspect and adjust parking brake handle (refer to “chapter 27 parking brake- parking brake handle,
                   adjustment”)

                                                                9.    Install parking brake handle shield
                                                                (a).   Install parking brake handle shield.







                                                                (b).   Screw up the 2 fixing screws.









                                                                10.   Connect the parking brake handle switch
                                                                    connector









                                                                                                                    27










               11.   Connect the battery negative pole cable
