27-4
Parking brake- parking brake handle

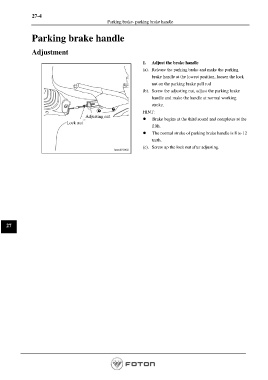

Parking brake handle

Adjustment

1. Adjust the brake handle
(a). Release the parking brake and make the parking
brake handle at the lowest position, loosen the lock
nut on the parking brake pull rod
(b). Screw the adjusting nut, adjust the parking brake
handle and make the handle at normal working
stroke.
HINT:
Adjusting nut z Brake begins at the third sound and completes at the
Lock nut
fifth.
z The normal stroke of parking brake handle is 8 to 12
teeth.
(c). Screw up the lock nut after adjusting.
