27-5

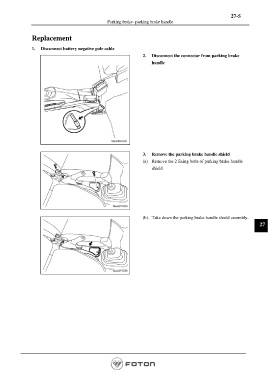

                                                 Parking brake- parking brake handle

               Replacement


               1.   Disconnect battery negative pole cable
                                                                2.   Disconnect the connector from parking brake
                                                                    handle












                                                                3.    Remove the parking brake handle shield
                                                                (a).   Remove the 2 fixing bolts of parking brake handle
                                                                    shield.






                                                                (b).   Take down the parking brake handle shield assembly.
                                                                                                                    27
