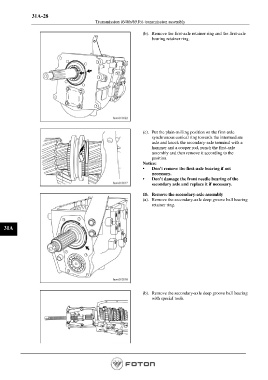

31A-28
Transmission (646b/651b)-transmission assembly

(b). Remove the first-axle retainer ring and the first-axle
bearing retainer ring.

(c). Put the plain-milling position on the first-axle
synchronous conical ring towards the intermediate
axle and knock the secondary-axle terminal with a
hammer and a cooper rod, punch the first-axle
assembly and then remove it according to the
position.
Notice:
• Don’t remove the first-axle bearing if not
necessary.
• Don’t damage the front needle bearing of the
secondary axle and replace it if necessary.

10. Remove the secondary-axle assembly
(a). Remove the secondary-axle deep groove ball bearing
retainer ring.

31A

(b). Remove the secondary-axle deep groove ball bearing
with special tools.
