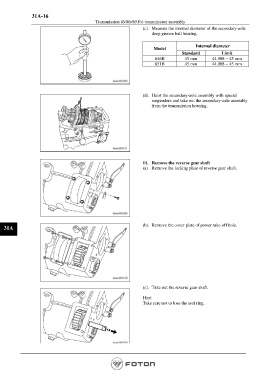

31A-16
Transmission (646b/651b)-transmission assembly
(c). Measure the internal diameter of the secondary-axle
deep groove ball bearing.
Internal diameter
Model
Standard Limit
646B 45 mm 44.988 ~ 45 mm
651B 45 mm 44.988 ~ 45 mm
(d). Hoist the secondary-axle assembly with special
suspenders and take out the secondary-axle assembly
from the transmission housing.
11. Remove the reverse gear shaft
(a). Remove the locking plate of reverse gear shaft.
(b). Remove the cover plate of power take-off hole.
31A
(c). Take out the reverse gear shaft.
Hint:
Take care not to lose the seal ring.
