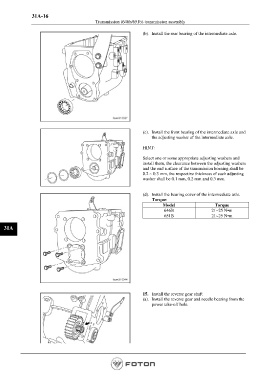

Page 880 - Workshop Manual - Aumark (BJ1051)

31A-16
Transmission (646b/651b)-transmission assembly

(b). Install the rear bearing of the intermediate axle.

(c). Install the front bearing of the intermediate axle and
the adjusting washer of the intermediate axle.

HINT:

Select one or some appropriate adjusting washers and
install them, the clearance between the adjusting washers
and the end surface of the transmission housing shall be
0.2 ~ 0.3 mm, the respective thickness of each adjusting
washer shall be 0.1 mm, 0.2 mm and 0.3 mm.

(d). Install the bearing cover of the intermediate axle.
Torque:
Model Torque
646B 21~25 N•m
651B 21~25 N•m

31A

15. Install the reverse gear shaft
(a). Install the reverse gear and needle bearing from the
power take-off hole.
