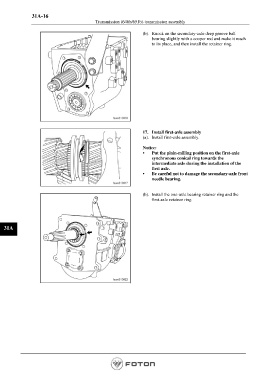

31A-16
Transmission (646b/651b)-transmission assembly

(b). Knock on the secondary-axle deep groove ball
bearing slightly with a cooper rod and make it reach
to its place, and then install the retainer ring.

17. Install first-axle assembly
(a). Install first-axle assembly.

Notice:
• Put the plain-milling position on the first-axle
synchronous conical ring towards the
intermediate axle during the installation of the
first axle.
• Be careful not to damage the secondary-axle front
needle bearing.

(b). Install the one-axle bearing retainer ring and the
first-axle retainer ring.

31A
