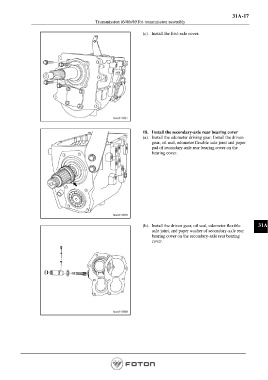

Page 883 - Workshop Manual - Aumark (BJ1051)
P. 883
31A-17
Transmission (646b/651b)-transmission assembly
(c). Install the first-axle cover.
18. Install the secondary-axle rear bearing cover
(a). Install the odometer driving gear. Install the driven
gear, oil seal, odometer flexible axle joint and paper
pad of secondary-axle rear bearing cover on the
bearing cover.
(b). Install the driven gear, oil seal, odometer flexible 31A
axle joint, and paper washer of secondary-axle rear
bearing cover on the secondary-axle rear bearing
cover.
Page 883
