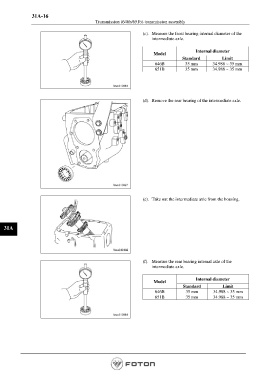

P. 878
31A-16
Transmission (646b/651b)-transmission assembly
(c). Measure the front bearing internal diameter of the
intermediate axle.
Internal diameter
Model
Standard Limit
646B 35 mm 34.988 ~ 35 mm
651B 35 mm 34.988 ~ 35 mm
(d). Remove the rear bearing of the intermediate axle.
(e). Take out the intermediate axle from the housing.
31A
(f). Measure the rear bearing internal axle of the
intermediate axle.
Internal diameter
Model
Standard Limit
646B 35 mm 34.988 ~ 35 mm
651B 35 mm 34.988 ~ 35 mm
