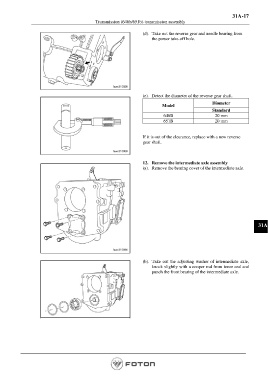

31A-17
Transmission (646b/651b)-transmission assembly
(d). Take out the reverse gear and needle bearing from
the power take-off hole.
(e). Detect the diameter of the reverse gear shaft.
Diameter
Model
Standard
646B 20 mm
651B 20 mm
If it is out of the clearance, replace with a new reverse
gear shaft.
12. Remove the intermediate axle assembly
(a). Remove the bearing cover of the intermediate axle.
31A
(b). Take out the adjusting washer of intermediate axle,
knock slightly with a cooper rod from inner end and
punch the front bearing of the intermediate axle.
