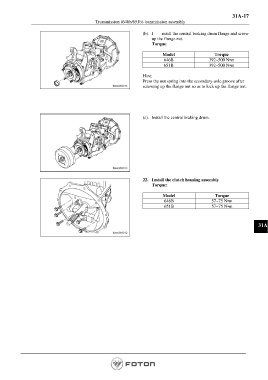

31A-17
Transmission (646b/651b)-transmission assembly

(b). I nstall the central braking drum flange and screw
up the flange nut.
Torque:

Model Torque
646B 392~500 N•m
651B 392~500 N•m

Hint:
Press the nut spring into the secondary-axle groove after
screwing up the flange nut so as to lock up the flange nut.

(c). Install the central braking drum.

22. Install the clutch housing assembly
Torque:

Model Torque
646B 57~75 N•m
651B 57~75 N•m

31A
